Description

DETAILED SPECIFICATIONS
Image Sensor: 1/3″ GC4653 CMOS Sensor
Resolution: 2880 x 1624
Video Compression: H.264 / H.265 / H.265+
Lens: 4mm Fixed Lens
Lens Mount: M12 Mount
LED: 4 Half White LED & 4 Half IR LED
IR LED Range: 20 Meters
White LED Range: 15 Meters
Noise Reduction: 3DNR (Off / Low / Medium / High / Higher)
White Balance: Auto
S/N Ratio: 39.1 dB
Day & Night: Auto / Color / Black & White
Minimum Illumination: Color: 0.1 Lux; B/W: 0.01 Lux
Image Settings: Supports brightness, contrast, saturation, white balance, AWB, AGC, AE; includes privacy area; supports 90°/270° image rotation; automatic and manual color-to-black switching
OSD: Supported
Mirror/Flip: On/Off
Privacy Masking: 4 Zone Selectable
Video Main Streaming: Options: 5MP (2880 x 1624), 4MP (2560 x 1440), 3MP (2304 x 1296), 2MP (1920 x 1080), 1MP (1280 x 720)
Video Sub Streaming: Options: 448P (800 x 448), D1 (704 x 576), 360P (640 x 360), CIF (352 x 288)
Video Bit Rate: 1280 kbps – 4 Mbps adjustable; supports CBR/VBR
Audio Streaming: G.711 Codec Standard; supports audio & video
Audio Bit Rate: 64 Kbps
Audio Input: Analog Audio In (supports Passive/Active)
Smart Analysis: Target Count, Object Left/Lost, Area Detection, Line Crossing
Network Protocol: TCP/IP, UDP, HTTP, DHCP, RTSP, NTP
System Compatibility: ONVIF, T8s, Slink, GB28181
User: Supports up to 3 users
Communication Interface: RJ45 10/100 Mbps; Analog Audio In
Power Input: PoE RJ45 input 48V Standard / DC Input 12V 2A
Power Consumption: Max. 5W (7W with ICR)
Operating Temp/Humidity: -10°C to +50°C; 30% to 80% RH
Storage Temp/Humidity: -20°C to +60°C; 20% to 90% RH
Dimensions: 108.4 x 108.4 x 98 mm (L x W x H)
Housing Type: Plastic (IP66) Housing
Net Weight: 0.240 KG
Gross Weight: 0.320 KG

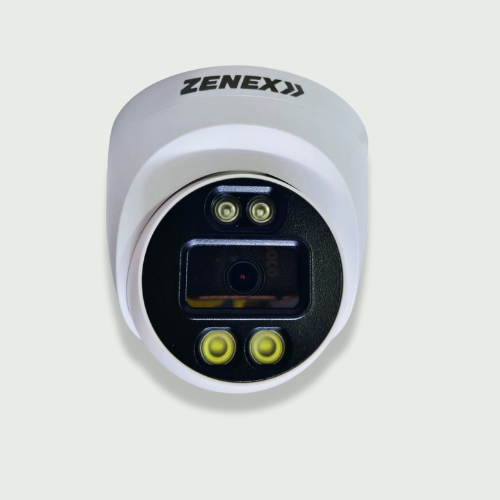

Disclaimer: The product images may vary depending on the model, features, and functions. The camera image shown is for illustrative purposes only.
